Lime incorporation into poor performing, acidic soil patches within the paddock, East Yuna 2016 trial report

Page last updated: Thursday, 29 June 2017 - 1:15pm

Please note: This content may be out of date and is currently under review.

Amelioration of soil pH in poor soil patches in paddocks was tested using lime application and deep ripping treatments.

Lime application had greatest influence on improving wheat yield in poor soil as the yield has increased in this area to closely match the good soil with no lime application.

The sweep and deep rip + sweep treatments improved the subsurface pH but deep ripping treatment prior to lime did not improve subsurface pH.


The most common rate of agricultural lime application is one tonne per hectare as a blanket application across the surface of the whole paddock (Taking soil acidity seriously - results of grower surveys 2012, page 118).

This amount is often insufficient to recover and maintain soils above recommended targets of pH 5.5 and 4.8 in topsoil and subsoil, respectively.

As a result of Caring for Country project SP11-01226, growers in Western Australia are increasingly testing pH of soils below 10cm.

Growers understand the importance of lime in restoring soil pH, as seen by the increase in sales of lime in the northern wheatbelt (Liebe group technical audit results 2012).

However, according to Gazey and Andrew, lime sales of 1.1 million tonnes in 2012 (Effective management of soil acidity requires knowledge at the farm, state and national scale) are still less than half that of the 2.5 million tonnes required per year, indicating low adoption of the recommended practice.

Preliminary work by Davies, 2012 (Developing and assessing agronomic strategies for water repellent soils, page 71) has shown the applicability of a number of innovative techniques, including mouldboard ploughing and rotary spading, for incorporation of lime to depth.

Lime on the topsoil can be incorporated to a depth of 30cm enabling management of pH at this depth.

This trial is one of six similar trials throughout the northern wheatbelt. It will help establish best practice methods and promote the effectiveness of these techniques throughout the rainfall zones of the northern agricultural region.


The purpose of this trial was to determine the value of large amounts of lime, and the influence of deep ripping, on the poor soil patches within paddocks.

Trial details

Trial details
Property Westons, East Yuna
Soil type Red loamy sand
Paddock rotation 2014 wheat, 2015 wheat, 2016 wheat
Treatments 2015 - Lime: 0, 6, 10t/ha
2015 - Incorporation: Nil, Deep ripper (before lime was spread), 12” sweep on 11” spacing, Deep ripper + sweep
Replicates Six
Growing season rainfall 2016 - Second season (Wandana rainfall station) January – March 22mm
April – September 198mm


Note; pH discussed as pH (1:5 CaCl2)

On good soil, subsoil pH was adequate at soil depth of 20-60cm but below target at 10-20cm. At 0-10cm, samples were either below target pH or adequate.  On poor soil, pH was below target for 10-60cm soil depth.  At 0-10cm, pH was of concern or adequate

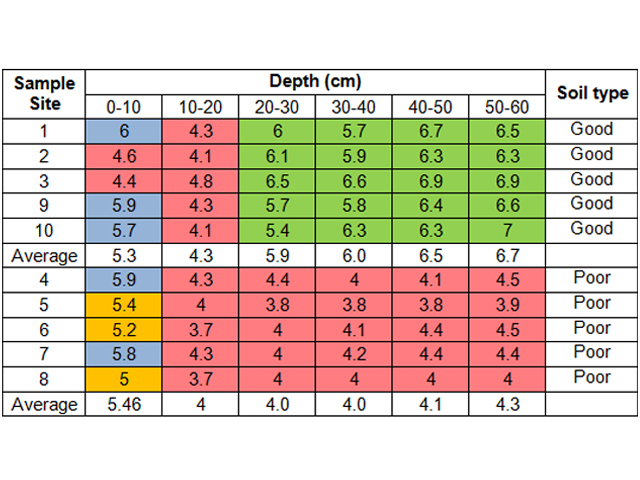

Table 1 Results from preliminary soil sampling at East Yuna, indicating the two distinct soil types within the demonstration classified as ‘good’ and ‘poor’ for the purposes of this report. Green and blue cells indicate adequate pH, yellow where pH is a concern, red where pH is below target.
The deep rip   sweep and sweep treatments have incorporated lime and increased soil pH at surface and through the profile.
Figure 1 Soil pH profile results from year 2 (2016) of incorporation on the good soil within the East Yuna demonstration
For the nil and deep rip treatments there were no 0t/ha lime control strips on the poor soil patches of the site.  Only the deep rip   sweep and sweep treatments have incorporated lime and increased soil pH at surface and through the profile.
Figure 2 Soil pH profile results from year 2 (2016) of incorporation on the poor soil within the East Yuna demonstration

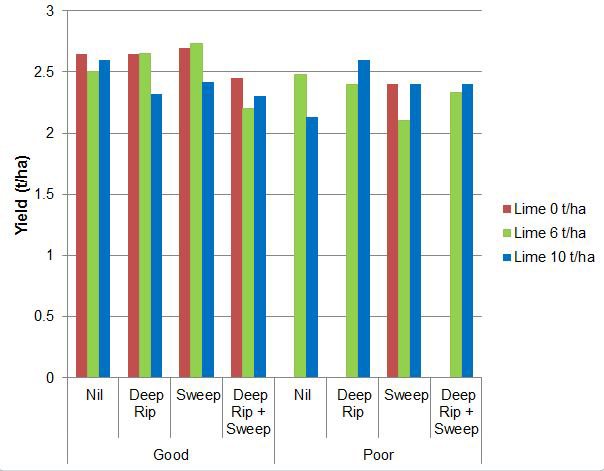

Figure 3 Yield (t/ha) from each soil type with the respective incorporation treatments
Lime incorporation has improved the yield in poor soil since being applied
Figure 4 Yield (t/ha) from each soil type over last two seasons


Two soil types are present within the East Yuna demonstration site (Table 1). The soils are best described as red loamy sand with good pH in the subsurface and red loamy sand with poor pH throughout the profile.

A good pH in the subsurface is above pH 4.8. Due to plot size it was not possible to have equal replication for each treatment in each soil type. Deep ripping x 0t/ha and Nil incorporation x 0t/ha were not within the area of poor soil.

Deep ripping treatment occurred prior to the application of lime and has not improved sub-surface pH (Figure 1).

To increase possibility of lime incorporation the ripping should occur after the lime has been applied.

While not used in this trial, slot openers can be added to the back of the deep ripper tine to allow topsoil to fall in behind and down to the depth of ripping improving the sub-surface pH.

The sweep and deep rip + sweep treatments have improved the subsurface pH (Figure 1 and 2).

Plants emerging within the area of the poor soil improved this season and were close to matching the plant numbers in the good soil area. Later in the season the head numbers of wheat were lower in the poor soil, this being one of the reasons for the lower yield in comparison to the good soil. However, the yield on the poor soil areas, in comparison to the good soil areas, has greatly improved since the previous season (Figure 4). This is starting to show the value of lime application and incorporation on targeted areas of soil with low pH.


Thanks to Kim and Jason Batten at Yuna for managing the trial; also to DAFWA technical services staff for their assistance and SoilTech for soil sampling.

This project is supported by the Northern Agricultural Catchments Council, through funding from the Australian Government’s National Landcare Programme.
